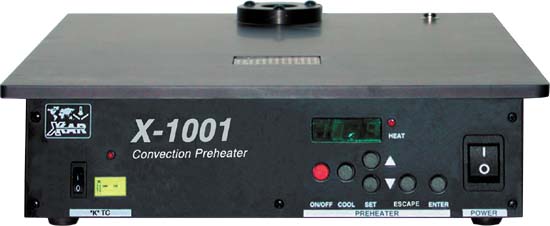

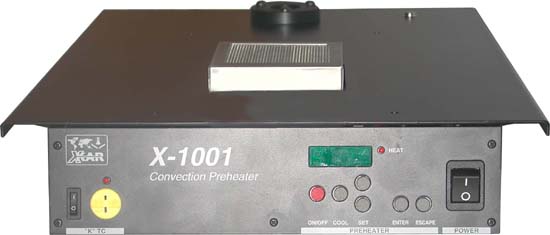

X-1001 Series UNDER BOARD
The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator’s convenience.
X-1001 Units are extremely accurate, have user adjustable off-set and unique acceleration mode to speed-up initial warm-up from room temperature.
Built-in "K" thermocouple type temperature meter provides on board means for verification of actual rework process temperatures at the point selected by the user.
The X-1001 Series Pre-heaters were designed to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the appropriate process control for Rework and Repair. Pre-heater Units are microprocessor controlled to maintain accuracy and to extend heating element life.
Use of pre-heaters provides protection of the boards (and the vias inside them) against sudden thermal shock to prevent difficult to detect damages as well as components themselves, which are already connected to the board. Bottom convection pre-heat of the large area of the boards guarantees even and gradual thermal expansion. Pre-heated board to e.g. 130 degrees C, needs much less thermal energy to de-solder or re-solder a component on the board. To de-solder the component only 53 degrees C are needed (183 deg., which is melting temperature of the solder minus 130 deg. which the board pre-heated to by the bottom pre-heater). To achieve this relatively low temperature differential, lower thermal capacity and lower air temperature tool can be used which guarantees safer for the board and the components rework process. This lower temperature differential required to obtain solder melting point makes the rework process much faster than the one, which is done when using conventional rework tools.
Standard board holder XU-1 or XU-1S allows you to mount 12" (305mm) wide x not limited in length boards. Other, optional board holders are available to accommodate boards up to 21.5" wide. Available models are: XU-2 and XU-3. The powerful Pre-heater will also allow you to rework high mass boards, which have through hole components like connectors etc. (you must use proper pre-heat temperature which is lower than the maximum allowable value for the plastic from which your connectors are made).
|Input Voltages||110-120, 220-240V AC|
|Power Consumption||Max. 1080VA||Max. 570VA|
|Weight||12.1 Ibs. (5,5 kg )|
|System dimensions||19.1" x 11.4" x 3.2" (487 x 291 x 82 mm)|
|Packaged weight||14.4 lbs. (6,5 kg)|
|Max. Power||1050 VA||525 VA|
|Free Air Temperature at 1" (2,5cm)
from the preheater chamber
|210° to 572°F (100° to 300°C)|
|Preheat Temperature measured on a PCB||140-302 °F (60 -150 °C)|
|Preheat area||More than 8" square (51,6 cm2)||More than 4" square (25,8 cm2)|
|Average PCB preheat time to 150°C||Less than 2 min.|
